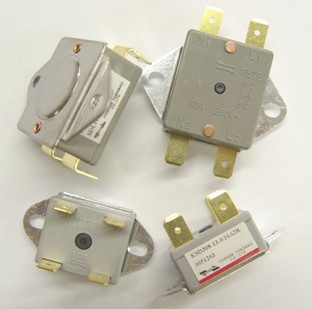

KSD308系列
KSD306和KSD308系列產品屬于手動復位型的保護類溫控器，為雙刀結構，安全可靠，適用于大功率電熱水器（尤其是儲水式電熱水器）的過熱保護。它利用碟形雙金屬片在溫度達到一定值時產生瞬間突跳的原理，通過機構轉換
1.1.1 KSD306
OT范圍 OT range |
壽命 Life |
250V |
￡ |
1,000 |
CQC: 03002007918 TUV: R50099180 |

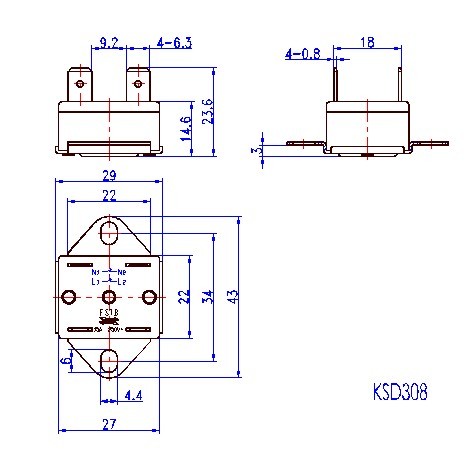

1.1.2 KSD308
OT范圍 OT range |
壽命 Life |
250V |
￡ |
10,000 |
CQC: 03002006563 |
? 接地方式：通過溫控器金屬外蓋與設備接地金屬部件相連。
Method of earth: By means of the metal cup of thermostat connected in the earthing metal part.
? 溫控器應工作于空氣相對濕度不大于90%、無腐蝕性氣、可燃性氣體和導電塵埃存在的一般室內環境。
The thermostat should work in environment with humidity not higher than 90%,free of caustic, flammable gas and conducting dust.
? 溫控器采用接觸感溫時，應使其封蓋緊貼被控器具的發熱部位，并應在封蓋感溫表面涂上導熱硅脂或其他性能類似的導熱介質。
When the thermostat is used to sense the temperature of solid items, its cover should be clung to the heating part of such items. Meanwhile, heat-conducting silicon grease, or other heat media of similar nature, should be applied to the cover’s surface.
? 不可把封蓋頂部壓塌或使其變形，以免動作溫度改變或影響其他性能。
The top of the cup must not be pressed to sink, so as to avoid adverse effect on the thermostat’s temperature sensitivity or its other functions.
? 不得讓液體滲入溫控器內部！殼體必須避免受到過大的力以防止出現裂紋；殼體應保持清潔，防止導電物質污染，以免因絕緣性能降低而發生短路擊穿。
Liquids must be kept out of the thermostat’s inner part! The base must avid any force that could lead to crack; it should be kept clear and away from the pollution of electric substance to prevent insulation weakening that leads to short-circuited damages.
? 使用過程不能折彎接線端子，否則將影響電氣連接的可靠性。
The terminals should be bent, or else, the reliability of electric connection will be influenced.
